by Horst Zoeller, 1996 - 2017, 63rd Edition, 8 December 2017

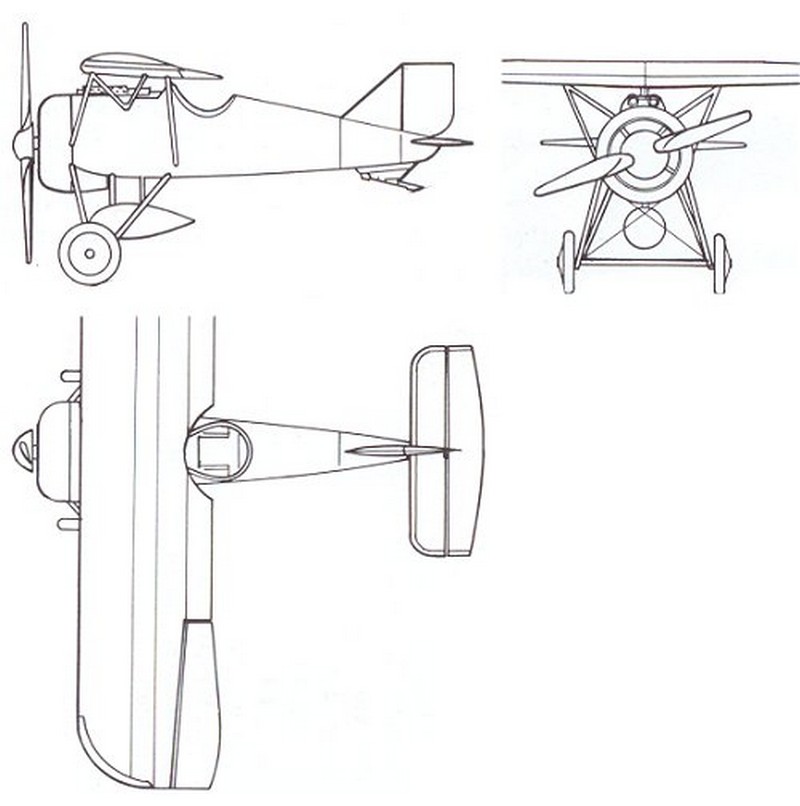

Junkers J6

Experimental Fighter Aircraft, designed 1917, probably one built, but not completed
developed by Junkers + Co. in Dessau

Historical Background:

During WWI the German fighter pilots increased their demand for socalled Parasol aircraft with high mounted single wings. It seems as if Hugo Junkers started a Parasol design in 1917. Some sources mention the J6 design as the first Parasol approach of Junkers. Other sources refer to the J6 as a similar design to the J5, while the Parasol should have been the J12. Due to the fact, that the designator J12 was definitely used for a passenger aircraft design of Junkers after WW I and due to the fact, that the Parasol project was stopped during WW I, but a prototype construction was already on its way, it is believed, that the J6 might have been the first Parasol designator of Junkers. This designator also fits better to the development year 1917 than the J12.

The prototype construction was started around summer 1918. But Junkers stopped the further construction work, when IDFLIEG was not willing to place an order for a J6/12 test aircraft until further experiences from the J9 were available. In November 1918 nearly 50% of the J6/12 prototype were built. Due to the end of WWI, IDFLIEG was no longer interested in ordering further aircraft. Therefore the J6/12 prototype was scrapped.

Junkers returned to the ideas of the Parasol after WWI, when he built the
Junkers K16 and later on the T19 and the following aircraft family for the Russian Air Force.

Technical Data

Aircraft

year engine length
in m
span
in m
wing area
im sqm
net weight
in kg
payload
in kg
seats speed
in km/h
range
in km

J6 or J12

1918

Siemens ShIII (118kW)

5,60

8,00

12,00

420

195

1 pilot

190

270

Notes:

Some sources also mention a Junkers J12 as a Parasol fighter aircraft. It might be, that the J12 originally was inteneded as a further development of the J6, which was dropped after the end of the war Action. The J12 Designator was most probably changed to the development of a first civil airliner Junkers J12 in 1919.

Weblinks:

Literature:
no dedicated J6 Literature known yet



introduced Jul 1996, transfered Jun 2017
contents last updated 25 Dec 2002
