Baade (VEB Flugzeugbau) 156 / 157
Agricultural Aircraft of 1960/61, also known as "Flora" and SP-043

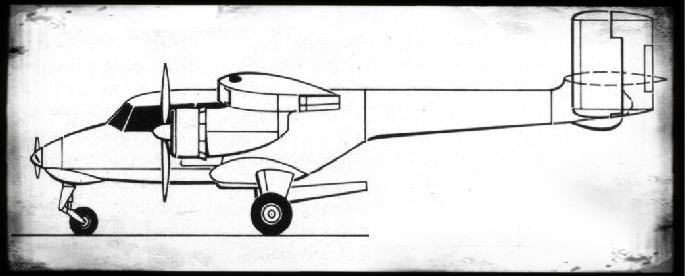

Baade 156 "Flora" (from Fliegerrevue 08/90)
The Baade 156 was agricultural aircraft, which was developed under the Name "Flora". The aircraft was designed for Transport Tasks of up to 1000kg as well as for spraying Services and fire fighting. The aircraft had a shoulder mounted wing and two AI-14R Piston engines mounted under the wing. The twin tail was mounted on a rear spar behind the cabin.
The Baade 157 was a further development of the 156 for Police Survey flights, for parachute flights, for ambulance Services or for Ultra short range passenger flights. The 157 got other engine mountings, tails and landing gears compared to the 156. Several studying Projects were set up for the different designs:
- SP043 - Basic Agricultural Aircraft
- SP043A - Passenger and Ambulance Aircraft, modified tail unit, lower landing gear, lenght: 13m, height 3,75m
- SP044 - Passenger Aircraft, V-Tail, wing integrated engine
- SP045 - Agricultural Aircraft, spraying aircraft
- SP046 - Passenger Aircraft with larger fuselage and back door
- SP048A - Passenger-, Ambulance and Parachute Aircraft
- SP049 - Agricultural Aircraft as SP048A with double tails
- SP049A - as SP049 for Passenger, Ambulance and Parachute missions, length 13,30m
- SP050 - as SP049 Agricultural aircraft, tail from SP043, length 12,50m
The development was started in 1960 under the studying Project Designator SP-043, which was later transfered to the Baade 156/157 Designator. In February 1961 a mockup of the Baade 156 was finished. The development was stopped, when the GDR Government decided to Close the VEB Flugzeugbau in summer 1961.
Technical Data:
| Aircraft | year | engine | length in m | span in m | wing area im sqm | net weight in kg | T/O weight in kg | seats | speed in km/h | range in km |
|---|---|---|---|---|---|---|---|---|---|---|
| EF156 |
| 2 x AI-14R | 12,90 | 17,30 | 43,00 | 1910 | 3000 | 2 | 170 | 600
|
Weblinks:
- Skybird-ev.de - Baade 154 Chronology
- Bundesarchiv.de - VEB Flugzeugbau Letter about Baade 155 Presentation
- Flugzeug-Lorenz.de - Baade 155 Story and Data
Literature:
- Reinhard Müller
Brunolf Baade und die Luftfahrtindustrie der DDR
Sutton Verlag, 2013, ISBN 9783954001927
Read at Google Books - Fliegerrevue Extra
DDR Flugzeugindustrie - Aufstieg und Fall
Special Edition 1991
