Junkers T29

see also:  Junkers T29 Production List

Two seater cantilever monoplane Trainer , F/F 22 Apr 1925, 2 built
developed by Junkers Flugzeugwerke in Dessau by Zindel

Historical Background:

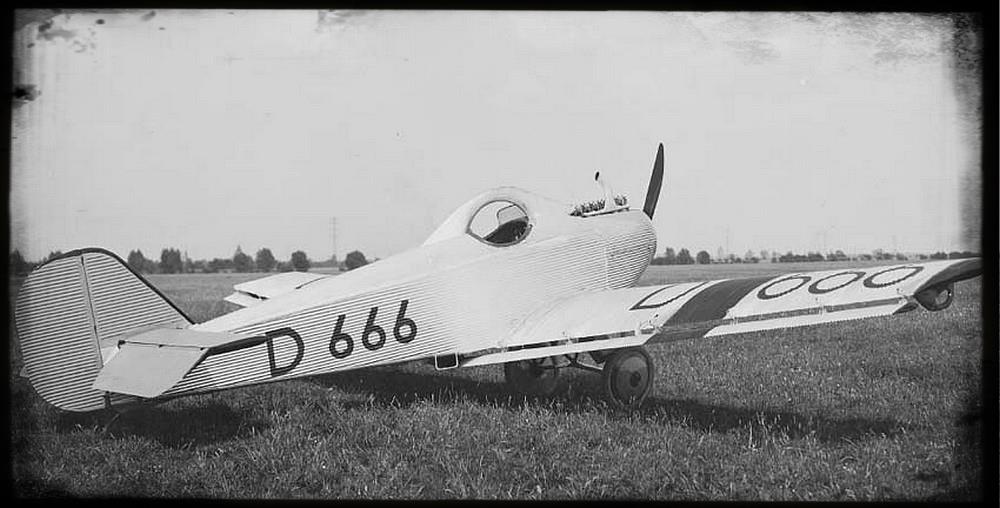

The T29 was an experimental aircraft for the new Junkers double wing (patented in 1921 DRP Nr. 396 621) flap system. This flap system was later used at the G38 and the Ju52. A very new feature of the T29 was the arrangement of the seats. Instead of putting the two seats behind each other, in the T29 both seats were arranged beside each other. A metal belt structure was constructed above the cockpit for pilot's safety, which gave the aircraft the nick Name "Flying Iron".

Just two aircraft were built, one with the Junkers L1a, the other with the Junkers L1b engine. Both prototypes took place at the German Round Flight 1925.



Technical Data

Aircraft

year engine length
in m
span
in m
wing area
im sqm
net weight
in kg
payload
in kg
seats speed
in km/h
range
in km

T29

1925

Junkers L1a (59kW)

7,15

11,50

17,70

490

260

2 pilots

140

470

Weblinks:

Literature:

  • None
