Junkers HK/SHK Engines

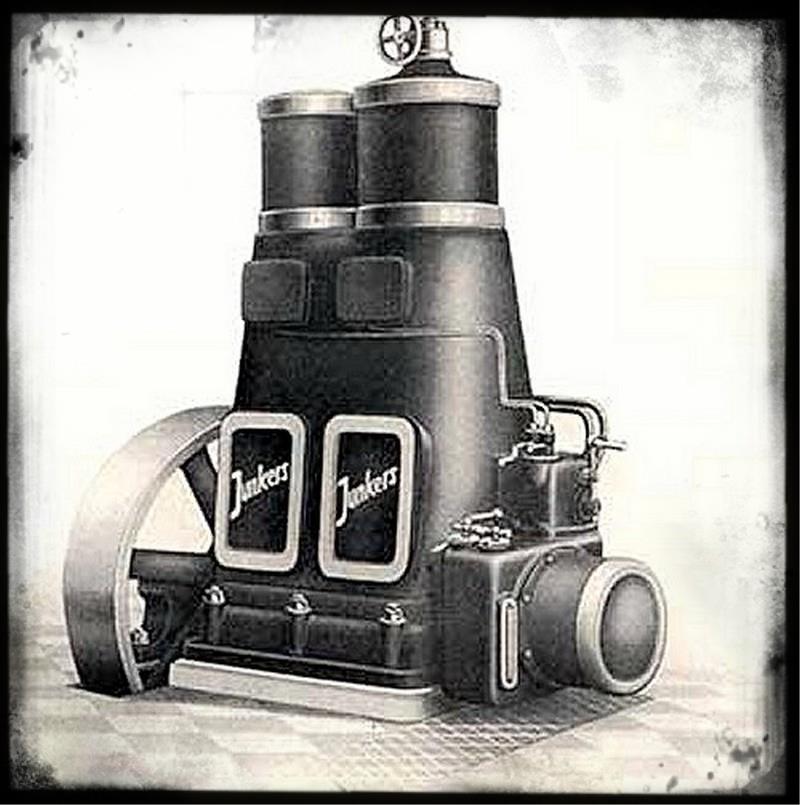

Junkers 2HK110 of April 1926

Historical Data:
The principles of the Haubenkolben Engines were already developed by the Prof. Junkers Versuchsanstalt Aachen in 1922/23. It took until 1925/26 to further develope this engine into a serial produced stationary oil engine for various applications. The HK-Series engines were scalable engines, which vary from the number of cylinders and the lift. These engines were built by the Junkers Motorenwerke Dessau in a large number for different types of applications, i.e. as a electrical power supply generator.

 The small HK65 was the most successfull engine of this series. During the early 30s the HK65 was used as a train engine, i.e. on the Diema B10/20.

After WWII this engine was still produced for ship engine applications for small river boats. Another ship engine was the SHK108 (see ship engines)


Technical Data:

Engine Cyl. Norm Power
in hpr/kW
Turn Rate
rpm
1 HK60
1 HK65
2 HK65
3 HK65
1 HK110
2 HK110
1 HK130
2 HK130
1 HK160
2 HK160
2 HK200
2 HK215
4 HK215
2 HK260
3 HK400
4 HK400
1
1
2
3
1
2
1
2
1
2
2
2
4
2
3
4
8/6
12,5/9
25/18
30/22
25/18
50/37
35/26
70/52
60/44
120/88
185/136
230/169
460/338
350/257
1200/882
1600/1176
1000
1200
1500
1200
500
500
450
450
375
375
300
375
375
375
250
250
